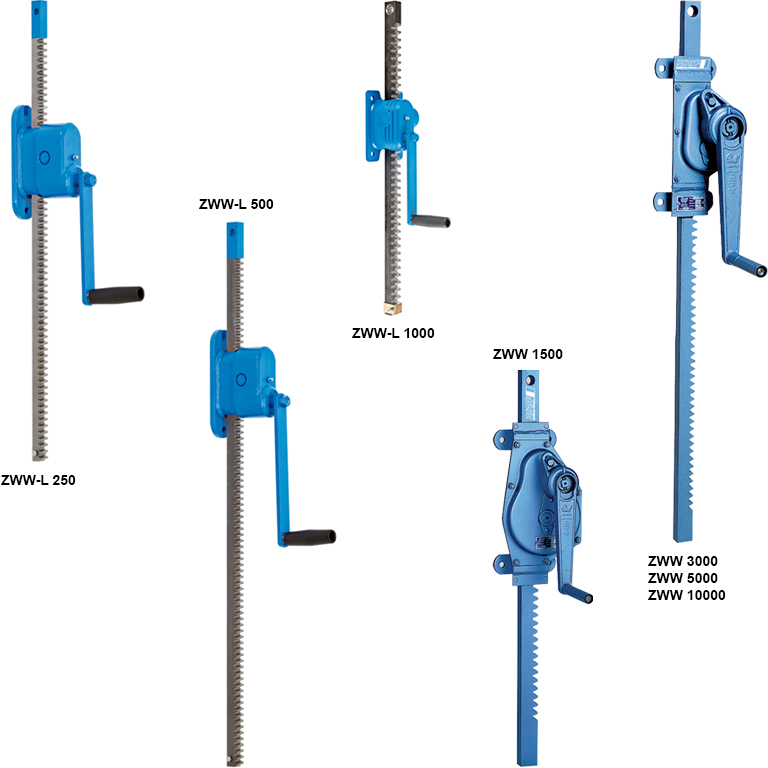

Rack and Pinion Jacks ZWW-L

• Capacity: 250 kg (550 lb) – 500 kg (1,100 lb) – 1,000 kg (2,200 lb)

Rack and Pinion Jacks ZWW

• Capacity: 1,500 kg (3,300 lb) – 3,000 kg (6,600 lb) – 5,000 kg (11,000 lb) – 10,000 kg (22,000 lb)

Wall-mounted rack and pinion jacks are used for lifting, pulling and pushing of loads.

Features

• Robust steel design with precision machined worm or spur gears for smooth and easy manual operation.
• Solid steel toothed rack with bore hole for fastening to load.
• Low wear due to hardened gearing parts and precisely machined gear teeth.
• Suitable for pulling loads of up to 10,000 kg (22,000 lb)
• Solid mounting tabs for rigid wall mounting.

Options

• Extended toothed racks.
• Zinc plating for improved corrosion protection.
• Folding handle.
